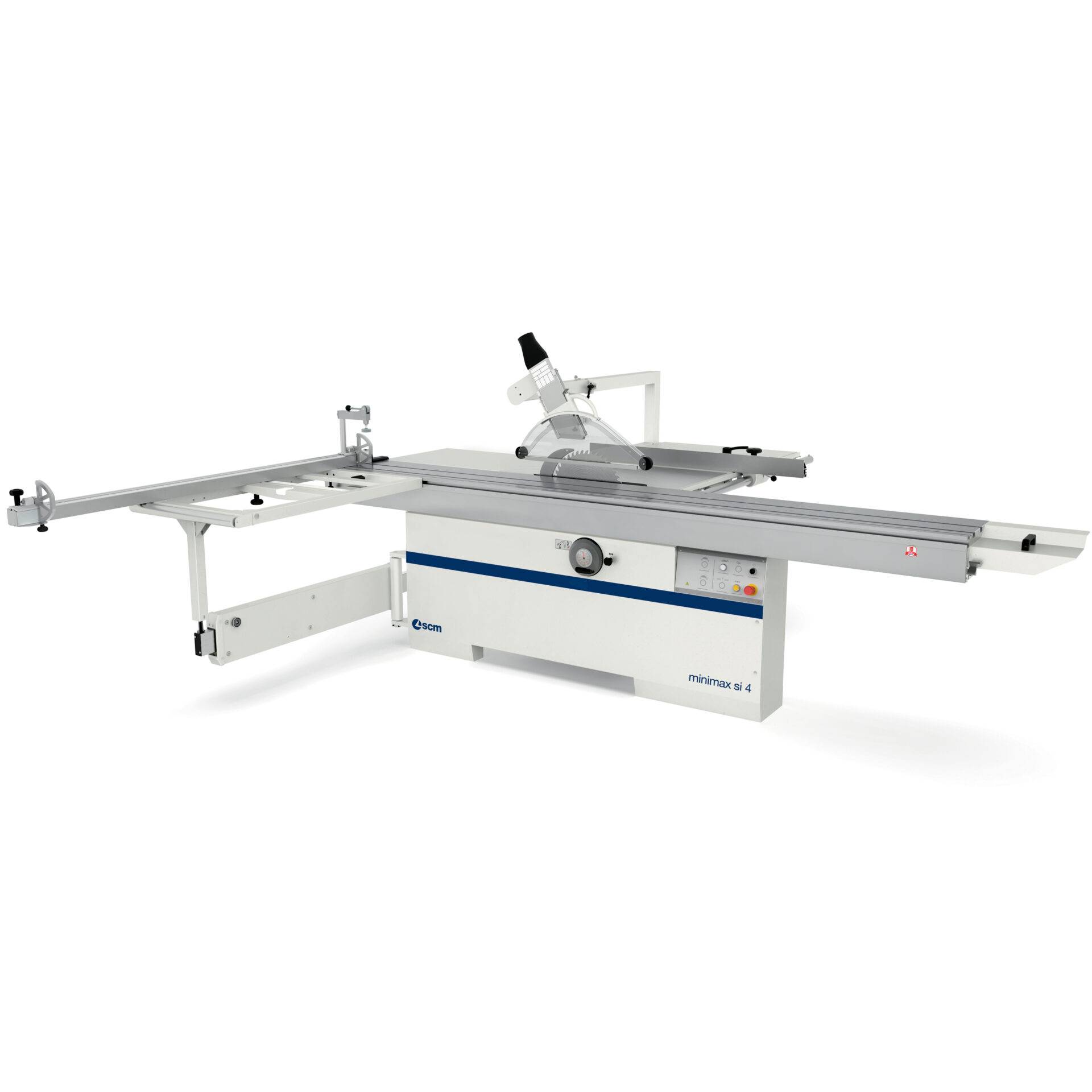

The Minimax SI 4 is the latest generation circular saw from SCM, replacing earlier models including the SC 4E, SI 315es and SI 400es. Built around a heavy-duty cast-iron saw unit with dovetail lift system, the SI 4 ensures unmatched stability and accuracy even under continuous use.
SCM Minimax si 4
Panel Saw
Request a Quote
PRODUCTS
Equipped with a tilting blade from 90° to 45°, the machine supports a wide range of cutting operations, while the precision sliding carriage guarantees smooth and reliable handling of large panels. The optional scoring blade unit allows perfect cuts on veneered or laminated boards, ensuring chip-free results.
The machine can be configured with advanced options such as the READY electronic control system, powered rip fence, and expanded squaring frames to suit the specific needs of modern workshops.
Thanks to SCM Thundercut App, operators can optimise cutting lists directly on a tablet, reducing material waste and streamlining production. With a 10-year guarantee on the sliding carriage system, the SI 4 offers long-term reliability and confidence.
Technical features
Circular saw
Cast iron saw-spindle moulder worktable dimensions:
840 x 560mm
Blades tilting:
90° ÷ 45°
Max. saw blade diam. with scoring blade installed
315mm
Max. saw blade projection from table at 90°/45°
100/78mm
Max. squaring stroke
2600mm (opt 2250)
Cutting width on parallel fence
1270mm
Single phase motors
2,2kW (3hp) 50Hz
Three phase motors
5kW (6.6hp) 50Hz
Exhaust outlets diameter
120mm
Additional information
Weight: 515 kg
Dimensions: 280 × 108 × 116 cm
940 x 560mm
90° ÷ 45°
315 - 400mm
136/97mm
2250 - 3800mm (opt 2250)
900 - 1270mm
5kW (6.6hp) 50Hz
Technical features
Cast iron saw-spindle moulder worktable dimensions
Blades tilting
Max. saw blade diam. with scoring blade installed
Max. saw blade projection from table at 90°/45°
Max. squaring stroke
Cutting width on parallel fence
Three phase motors
