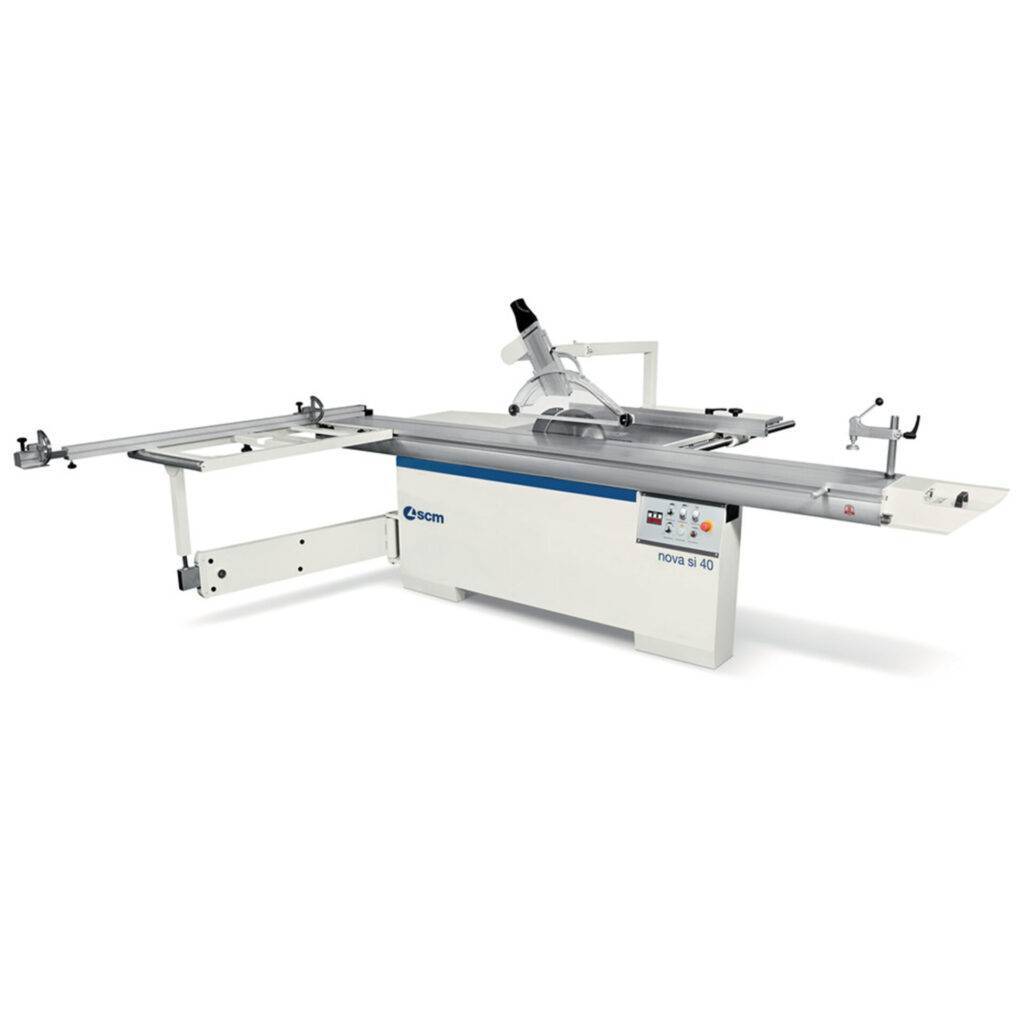

The SCM Nova SI 40 is a compact yet powerful sliding table panel saw, built for woodworking professionals who demand precision, reliability and long-term performance.

Its heavy-duty cast iron saw unit accommodates blades up to 400 mm in diameter, even with the scoring blade fitted — making it ideal for effortlessly cutting through veneer panels and thick solid timber.

Key Features
Outstanding Cutting Capacity
Achieve deep, accurate cuts with a maximum blade projection of 138 mm at 90° and 98 mm at 45°, ensuring clean results across a wide range of materials.

Independent Scoring Blade Motor
The main saw blade delivers full motor power thanks to an independent scoring motor, providing chip-free cuts without compromising performance.

Precision Sliding Table
The 360 mm wide aluminium sliding table offers exceptional accuracy and smooth movement. SCM’s exclusive aluminium riveting system mechanically secures the guides—removing the need for glue and guaranteeing lasting precision.

User-Friendly Squaring System
The large squaring frame, complete with an idle roller for easier panel loading, simplifies handling larger workpieces. The telescopic fence includes an inclined metric scale and two reversible stops, allowing squaring of panels up to 3200 x 3200 mm and mitre cuts up to 45° on both sides.

Built to Perform, Designed to Last
The SCM Nova SI 40 brings industrial performance to any professional workshop — combining precision, durability and versatility to meet the high standards of modern woodworking.

Technical features

Circular saw

Cast iron saw-spindle moulder worktable dimensions:
840 x 560mm

Blades tilting:
90° ÷ 45°

Max. saw blade diam. with scoring blade installed
315mm

Max. saw blade projection from table at 90°/45°
100/78mm

Max. squaring stroke
2600mm (opt 2250)

Cutting width on parallel fence
1270mm

Single phase motors
2,2kW (3hp) 50Hz

Three phase motors
5kW (6.6hp) 50Hz

Exhaust outlets diameter
120mm

Additional information

Weight: 515 kg

Dimensions: 280 × 108 × 116 cm
